Orthanc with external keycloak server set up

Hi everyone,

after testing the docker compose via orthanc-team / orthanc-auth-service, I decided to test with my external keycloak server instead using the local one. However, I got some issue on the set up.

  1. I use the nginx image and update my defaults.conf
# SPDX-FileCopyrightText: 2022 - 2024 Orthanc Team SRL <info@orthanc.team>
#
# SPDX-License-Identifier: CC0-1.0

server {
    listen 80;

    # Common settings for handling large files, headers, and buffer sizes
    # To avoid 504 error when uploading big files
    proxy_read_timeout 60s;

    # To avoid "too big header... / 502 Bad Gateway" error
    proxy_buffer_size   32k;
    proxy_buffers   64 8k;
    proxy_busy_buffers_size   48k;

    # To avoid "414 Request-URI Too Large" when opening multiple studies in OHIF
    large_client_header_buffers 8 16k;

    # Location for Keycloak Authentication
# Location for Keycloak Authentication
    location /keycloak/ {
        # Forward requests to the Keycloak authentication server
        proxy_pass https:/my_keycloak_server/auth;
        # Rewrite the URL to match expected Keycloak path
        rewrite ^/keycloak/(.*) /$1 break;

        # Set necessary headers for Keycloak
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Forwarded "for=$proxy_add_x_forwarded_for;proto=$scheme";

        # Disable proxy request buffering
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;

        # Set client size limits for large requests
        client_max_body_size 0;
    }


    # Default redirect for the root location
    location / {
        return 301 /orthanc/ui/app/;
    }

    # Location for Orthanc
    location /orthanc/ {
        proxy_pass http://orthanc:8042;
        rewrite /orthanc(.*) $1 break;
        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;
        client_max_body_size 0;
    }

    # Location for OHIF viewer
    location /ohif/ {
        proxy_pass http://ohif:80;
        rewrite /ohif(.*) $1 break;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Forwarded "for=$proxy_add_x_forwarded_for;proto=$scheme";
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;
        client_max_body_size 0;
    }
}

Then, I update my keycloak config under ORTHANC_JSON

              "Keycloak": {
                "Enable": true,
                "Url": "https://my_keycloak_server/auth",
                "Realm": "myrealm",
                "ClientId": "orthanc-dev"
              }

for the orthanc-auth-service setup, I noticed that there is default values assigned to the KEYCLOAK_ADMIN_URI, so I empty it out

SECRET_KEY: "password"
      ENABLE_KEYCLOAK: "true"
      KEYCLOAK_URI: "https://my_keycloak_server/auth/realms/myrealms/"
      #      ENABLE_KEYCLOAK_API_KEYS: "true"
      #      # to enable the permissions edition UI in OE2, you need to provide a KEYCLOAK_CLIENT_SECRET
      #      KEYCLOAK_CLIENT_SECRET: "change-me-I-am-a-secret-you-get-in-keycloak-logs"
      KEYCLOAK_CLIENT_SECRET: "xyxyxyyxyxyxyxyyxyxyxyyxyxyyxyyxyxx"
      KEYCLOAK_ADMIN_URI: ""

When I visit my server ip on browser, it try to redirect me to my keycloak but it keep saying Invalid parameter: redirect_uri. When I visit ip/keycloak, it is not redirecting me to the keycloak login page.
I am little confused with how I can integrate with the external keycloak server. Could you give me some suggestion how to do it?

Thank you!

Hello,

There is a discrepancy between the 2 parts of the config you quoted:

myrealm

"Keycloak": {
                "Enable": true,
                "Url": "https://my_keycloak_server/auth",
                "Realm": "myrealm",

myrealmS

SECRET_KEY: "password"
      ENABLE_KEYCLOAK: "true"
      KEYCLOAK_URI: "https://my_keycloak_server/auth/realms/myrealms/"

That being said, if ip/keycloak doesn’t show your keycloak instance, the problem is on the Nginx or the Keycloak side.

I would:

  1. check the nginx logs to see if the query goes to the right place
  2. compare your keycloak configuration with the configuration of the keycloak we provide

I hope this helps,
Cheers,

Hello,

Currently when I access my server IP, it will redirect me to the SSO page. However, once I login, it redirects me to IP/orthanc/ui/app/#/ but it is a blank page.

Do you know if there is a config issue with my nginx or on the keycloak?

Here is my updated nginx.conf

# SPDX-FileCopyrightText: 2022 - 2024 Orthanc Team SRL <info@orthanc.team>
#
# SPDX-License-Identifier: CC0-1.0

server {
    listen 80;

    # Common settings for handling large files, headers, and buffer sizes
    # To avoid 504 error when uploading big files
    proxy_read_timeout 60s;

    # To avoid "too big header... / 502 Bad Gateway" error
    proxy_buffer_size   32k;
    proxy_buffers   64 8k;
    proxy_busy_buffers_size   48k;

    # To avoid "414 Request-URI Too Large" when opening multiple studies in OHIF
    large_client_header_buffers 8 16k;

    # Location for Keycloak Authentication
# Location for Keycloak Authentication
    location /auth/ {
        # Forward requests to the Keycloak authentication server
        proxy_pass https://broker.id.keycloak.server/auth/realms/myrealm/account;
        # Rewrite the URL to match expected Keycloak path
        rewrite ^/auth/(.*) /$1 break;

        # Set necessary headers for Keycloak
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Forwarded "for=$proxy_add_x_forwarded_for;proto=$scheme";

        # Disable proxy request buffering
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;

        # Set client size limits for large requests
        client_max_body_size 0;
    }


    # Default redirect for the root location
    location / {
        return 301 /orthanc/ui/app/;
    }

    # Location for Orthanc
    location /orthanc/ {
        proxy_pass http://orthanc:8042;
        rewrite /orthanc(.*) $1 break;
        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;
        client_max_body_size 0;
    }

    # Location for OHIF viewer
    location /ohif/ {
        proxy_pass http://ohif:80;
        rewrite /ohif(.*) $1 break;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Forwarded "for=$proxy_add_x_forwarded_for;proto=$scheme";
        proxy_request_buffering off;
        proxy_max_temp_file_size 0;
        client_max_body_size 0;
    }
}

On the keycloak client page, I followed the same setup as the github with
Valid redirect URIs : *
Valid post logout redirect URIs: +
Web origins: *

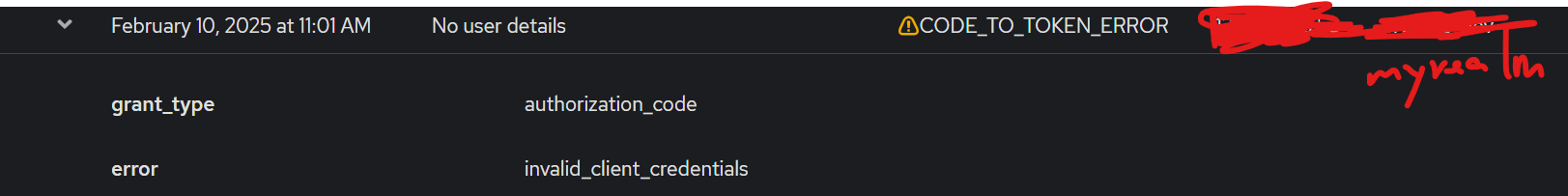

When I checked the events in keycloak, I could see login successful but the next error will be

I have a question regarding default docker compose config

  orthanc-auth-service:
    image: orthancteam/orthanc-auth-service:25.1.0
    # always disable port mapping in production !!!
    ports: ["8000:8000"]
    # permissions can be customized in the permissions.json file
    volumes:
      - ./permissions.jsonc:/orthanc_auth_service/permissions.json
    depends_on: [keycloak]
    restart: unless-stopped
    environment:
      SECRET_KEY: "change-me-I-am-a-secret-key"
      ENABLE_KEYCLOAK: "true"
#      ENABLE_KEYCLOAK_API_KEYS: "true"
#      # to enable the permissions edition UI in OE2, you need to provide a KEYCLOAK_CLIENT_SECRET
#      KEYCLOAK_CLIENT_SECRET: "change-me-I-am-a-secret-you-get-in-keycloak-logs"
      KEYCLOAK_CLIENT_SECRET: "qU5qhuToGyKHY4xKcUob5BUePwNBfSoH"
      PUBLIC_ORTHANC_ROOT: "http://localhost/orthanc/"
      PUBLIC_LANDING_ROOT: "http://localhost/orthanc/ui/app/token-landing.html"
      # to use OHIF-plugin:  make sure to use http://localhost/orthanc/ohif/
      PUBLIC_OHIF_ROOT: "http://localhost/ohif/"
#      PUBLIC_OHIF_ROOT: "http://localhost/orthanc/ohif/"
      USERS: |
        {
          "share-user": "change-me"
        }

When I login to the keycloak admin page and under the client “Orthanc”, I did not see any setup on the Credential but may I know how could you get the
KEYCLOAK_CLIENT_SECRET: “qU5qhuToGyKHY4xKcUob5BUePwNBfSoH”?
Could you clarify how it is got for the client? I am a bit confused with this part.

Thank you,
Orwanman

Hello,

Here is the part of the documentation you probably are looking for:

Regards,

since I am still using the old method and generate the client secret under the clients, is it still do-able in this way or is it mandatory to use the admin secret for KEYCLOAK_CLIENT_SECRET?
