Issues with single frame multiframes

General
1

Hi,

We are seeing a couple of issues trying to view single frame multiframes from Philips MRI scanners:

  • Trying to preview the instance from Orthanc Explorer gives me an HTTP 415
  • In Stone Web Viewer, the instance appears to never load. This is fine for instances with 2+ frames. I get no new errors in the console or logs.

Has anyone else experienced this? We use the LSB on Ubuntu 24.04, I can reproduce this with latest release and mainline versions of Orthanc/Stone.

Thanks.

2

Hello,

Please provide a minimal working example, including sample DICOM files (possibly anonymized), if you expect support from the Orthanc community.

Kind Regards,
Sébastien-

3

SingleFrameIssue-SingleFrameIssue–undefined-1.dcm (550.6 KB)

Hi,

Apologies for the delay.

The attached file does not show on this setup:

Ubuntu 24.04, LSB.

Dicom-web 1.21

Postgres 9.0

Stone-Webviewer 2.6

Orthanc 1.12.9

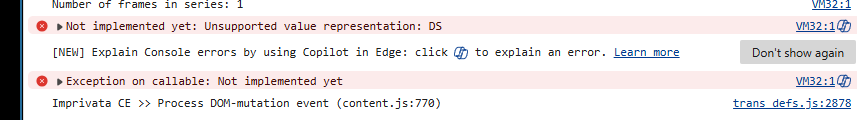

I get this in the browser console, which I don’t on the setup below.

image857×120 9.64 KB

There is no specific DICOM web config or Stone config. We have storage compression enabled.

It does work on another setup:

Windows 2019

Orthanc 1.12.8

Dicom-web 1.20

Stone-Webviewer 2.6

SQLite
